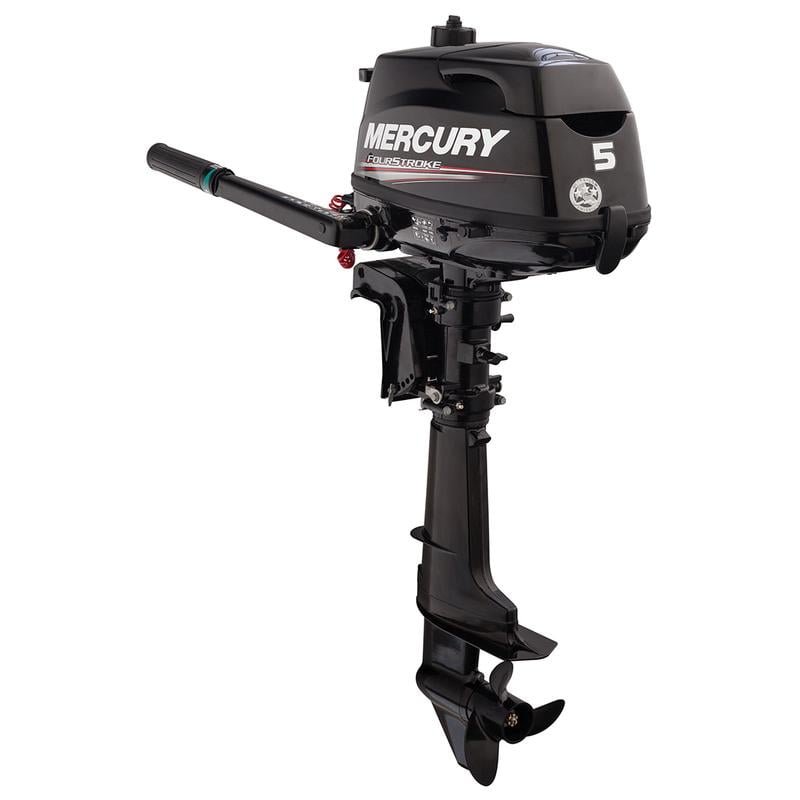

2021 Mercury 5 HP MLHA Sail Power Outboard Motor

$1,154.00

Categories: Mercury Outboard Motors, Product 2021

Description
Reviews (0)

Mercury Model 5MLHA is a 5HP outboard motor that is perfect for powering small sail boats, jon boats and drift boats. The 58 lb. 5 HP Mercury outboard is also perfect for auxiliary power for your sailboat. Mercury Outboard engines are known for reliable, efficient power at an affordable price. A larger carburetor and propeller provide for the extra power you crave on the water. The Mercury 5 HP outboard model # 5MLHA is equipped with the 20 inch long shaft, an integrated gas tank, manual rope start, forward, neutral and reverse shift, high thrust prop and 12V alternator.
We are an authorized Mercury Outboard dealer. Free shipping on all orders!

Additional information

Horsepower	5 HP
Shaft Length	20″ (Long)
Starter Type	Manual
Tilt & Trim	Manual

FEATURES

Compact and Lightweight
4 / 2 amp / 50 / 25 watt Charging System
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
6″ Pitch High Thrust Aluminum Propeller
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

SPECS

MODEL	5MLHA
MODEL YEAR	2021
SKU	5MLHA-21
WEIGHT	58.0 lb
MANUFACTURER	Mercury
COUNTRY OF MANUFACTURE	Japan
HORSEPOWER	5hp
SHAFT LENGTH	20″ (Long)
STEERING	Tiller
STARTING	Manual
TRIM & TILT	Manual
FUEL DELIVERY	Carburetor
FUEL TANK	Internal
CYLINDER(S)	1
DISPLACEMENT	123 cc (7.5 cubic inches)
BORE AND STROKE	59 x 45 mm (2.32 x 1.77 inches)
FULL THROTTLE RPM RANGE	4500-5500
IGNITION SYSTEM	Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING	OHV
VALVES PER CYLINDER	2
FUEL TYPE	87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE	0.3 US Gallon (1.15 liter)
OIL TYPE	SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY	15 fl. Oz. (450 ml)
LUBRICATION	Trochoid Pump
ALTERNATOR	4 / 2 amp / 50 / 25 watt with Charging Cord
COOLING SYSTEM	Water-Cooled, Thermostatically Controlled
SALTWATER RATED	Yes
GEAR RATIO	2.15:1
GEAR SHIFT	Forward-Neutral-Reverse (forward mounted shift lever)
PROPELLER	6.0″ Pitch High Thrust 3-Blade Aluminum
