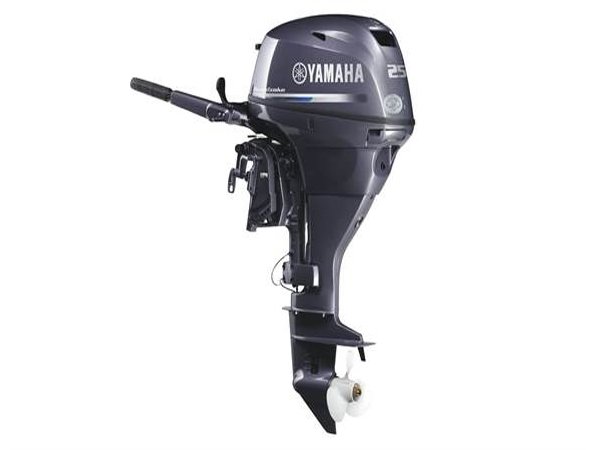

2018 Yamaha F25 Portable Mechanical ES/MS PT F25LWTC Outboard Motor

$2,990.00

Category: Yamaha Outboard Motors

Description
Reviews (0)

2018 Yamaha F25 Portable Mechanical ES/MS PT F25LWTC Outboard Motor

Our marine-specific, two cylinder, single overhead camshaft design features a new cylinder block and head to enhanced performance, durability and economy.
Better Starting: Manual-start models feature an easy grip starter knob with a built-in decompression device.
The Perfect Combination: Lightweight, compact and fuel efficient.

2018 Yamaha F25 Portable Mechanical ES/MS PT F25LWTC Outboard Motor

Features

Enhanced Durability: A proven 498cc two-cylinder, SOHC design features a new cylinder block and head. The pistons, connecting rods, and valves are the same as used in its F60 big brother, for added strength, responsive power and excellent fuel efficiency in a compact package.
Greater Reliability: New electronics and a new micro-computer controlled ignition system mean dependable starting and consistent power, while an advanced air intake system drains away any water that enters the cowling during normal engine operation for long-term reliability.
Responsive and Fuel Efficient Power: A streamlined intake manifold uses long tracks and smoother airflow, for reliable and responsive power with outstanding fuel efficiency.
Smooth and Quiet: Engine exhaust is routed through a maze before exiting above the waterline through the idle exhaust relief outlet for unbelievably smooth and quiet operation.
Choice of Controls: Tiller handle models feature improvements in strength and operator comfort, with stronger components and improved grip. Our Multi-Function tiller is also available as an option on remote control model.
Waist Driveshaft: A specially-designed driveshaft that is narrow in the center section and thicker on each end. This helps the driveshaft to temporarily flex when the propeller strikes a hard object reducing the risk of damage.

Engine

Engine Type: Four stroke, In-Line 2-Cylinder with counter balancer
Displacement: 498 cc (30.4 ci)
Bore & Stroke: 65 x 75 mm (2.56 x 2.95 in.)
RPM Range: 5000-6000
Compression Ratio: 9.4:1
Induction System: SOHC / 4 – valve
Alternator Output: 13 Amps
Fuel Delivery: Single Carburetor with accelerator pump
Starting: Electric or manual
Ignition: CDI Microcomputer
Lubrication: Wet sump
Degree of Trim/Tilt: Power Trim and Tilt or Manual with 2-position shallow drive
Exhaust: Through Propeller. Water-cooled, Labyrinth
Cooling: Raw water, Thermostatic Control
Gear Shift: F/N/R
Gear Ratio: 27/13 (2.08:1)

Fuel & Lubrication

Recommended Fuel: Unleaded Gasoline (Minimum Pump Octane 87)
Recommended Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
Oil Capacity: 1.7L (1.8 US qt.)

Dimensions

Shaft Length: L: 20 in.
Dry Weight: 76 kg (168 lb.)

2018 Yamaha F25 Portable Mechanical ES/MS PT F25LWTC Outboard Motor

Engine
Engine Type	Four stroke, In-Line 2-Cylinder with counter balancer
Bore x Stroke	65 x 75 mm (2.56 x 2.95 in.)
Displacement	498 cc (30.4 ci)
Starting	Electric or manual
Dimensions
Shaft Length	20 in.
Weight	76 kg (168 lb.)
General
Full Throttle Operating Range	5000-6000 rpm
Gear Ratio / Shift	27/13 (2.08:1) / F/N/R
Fuel Induction	SOHC / 4 – valve
Alternator	13 Amps
Cooling	Raw water, Thermostatic Control
