2018 Yamaha F9.9 Portable Tiller F9.9SMHB Outboard Motor

$1,646.00

Category: Yamaha Outboard Motors

Description
Reviews (0)

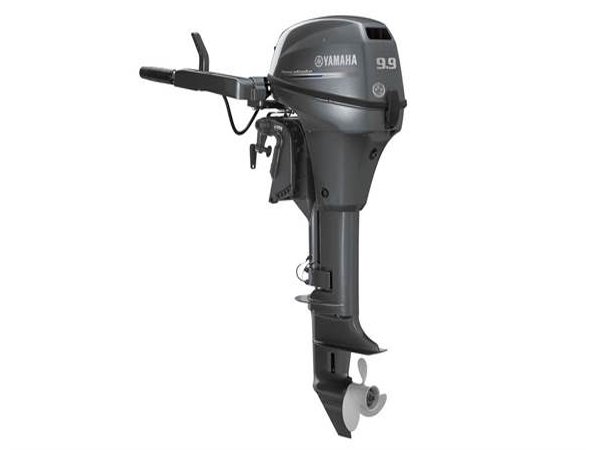

2018 Yamaha F9.9 Portable Tiller F9.9SMHB Outboard Motor

We took the popular F9.9 and completely redesigned it to offer even greater efficiency, and enhanced features all built into a smaller and lighter unit. In fact the F9.9 is nearly identical to our 9.9 two-stroke in size. This helps makes it the ideal lightweight outbaord companion promising the legendary Yamaha reliability over a million boaters have come to depend upon.
Better Starting: Manual-start models feature an easy grip starter knob with a built-in decompression device.
The Perfect Combination: Lightweight, compact and fuel efficient.

2018 Yamaha F9.9 Portable Tiller F9.9SMHB Outboard Motor

Features

Pad & Fold: An added resting pad means more storage options and improved storage stability, while the redesigned tiller handle allows the stored motor to take up less space.
With a Twist: The driveshaft on the new F9.9F and T9.9G has a special centre section that is narrower than the ends. It is designed to temporarily “twist” should the prop coming into hard contact with an underwater object, protecting the powerhead, propshaft and other vital engine components.
Control: The shortened tiller handle is now easier to use than ever before. Its new shift level shape provides better grip for precise shifting.
Fuel Sipper: Thanks to advanced Yamaha four-stroke engine technology the F9.9 boasts outstanding fuel economy – substantially better than 2-stroke 9.9-hp models.
Front & Centre: Convenient front-mounted controls facilitate smooth shifting, easy, shallow water drive and single action steering friction adjustment.
Anti-corrosion Protection: Yamaha’s unique YDC-30 aluminium alloy protects the engine’s exterior parts, while a zinc coating, high-quality stainless steel and 5-stage exterior coating offers long-lasting protection inside and out.

Engine

Engine Type: 2-cylinder
Displacement: 212 cc (12.9 ci)
Bore & Stroke: 56 x 43 mm (2.2 x 1.69 in.)
RPM Range: 5000-6000
Compression Ratio: 9.46:1
Induction System: SOHC
Alternator Output: 12v / 6 Amps
Fuel Delivery: Carburetor (1)
Starting: Manual or electric
Ignition: CDI Micro-Computer
Lubrication: Wet sump
Degree of Trim/Tilt: 4 positions/70 deg.
Exhaust: Through Prop / Water Cooled Lab
Cooling: Water/Thermostatic Control
Gear Shift: Tiller Mount F/N/R
Gear Ratio: 13/27 (2.08)

Fuel & Lubrication

Recommended Fuel: Regular Unleaded (Minimum Pump Octane 87)
Recommended Oil: Yamalube 4-M FC-W 10W-30 or 20W-40
Oil Capacity: 0.8L (.85 qt.)

Dimensions

Shaft Length: 15 in.
Dry Weight: 39 kg / 87 lb.

2018 Yamaha F9.9 Portable Tiller F9.9SMHB Outboard Motor

Engine
Engine Type	2-cylinder
Bore x Stroke	56 x 43 mm (2.2 x 1.69 in.)
Displacement	212 cc (12.9 ci)
Starting	Manual or electric
Dimensions
Shaft Length	15 in.
Weight	39 kg (87 lb.)
General
Full Throttle Operating Range	5000-6000 rpm
Gear Ratio / Shift	13/27 (2.08) / Tiller Mount F/N/R
Fuel Induction	SOHC
Alternator	12V / 6 Amps
Cooling	Water/Thermostatic Control
