2020 Mercury 6 HP 6MH Outboard Motor

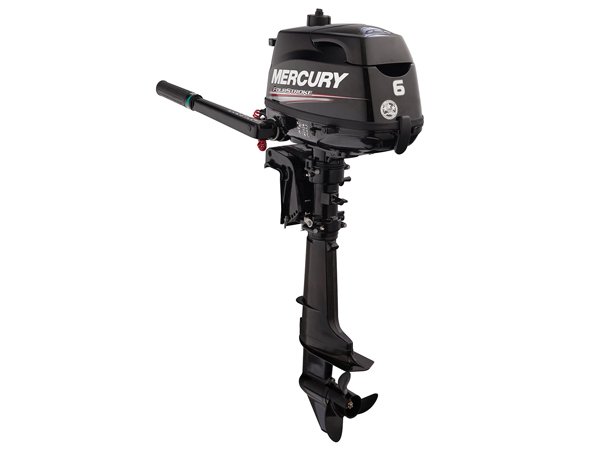

The 2020 Mercury 6 HP Outboard Model # 6MH, at just 57 Lbs with an integrated gas tank, is truly a portable outboard. This single cylinder outboard features an easy manual starting with a front mounted gear shift lever as well as tiller steering. The 6MH is a 15 inch short shaft model. Standard feature on this 6 HP Mercury outboard engine is an external tank connection. This portable outboard is perfect for small jon boats, skiffs and as a power source for your sailboat.

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

MODEL	6MH
MODEL YEAR	2020
SKU	6MH-20
WEIGHT	57.0 lb
MANUFACTURER	Mercury
COUNTRY OF MANUFACTURE	Japan
HORSEPOWER	6hp
SHAFT LENGTH	15″ (Short)
STEERING	Tiller
STARTING	Manual
TRIM & TILT	Manual
FUEL DELIVERY	Carburetor
FUEL TANK	Internal
CYLINDER(S)	1
DISPLACEMENT	7.5/123
BORE AND STROKE	2.32 x 1.77
FULL THROTTLE RPM RANGE	5000-6000
IGNITION SYSTEM	CDI w/electric spark advance
INDUCTION SCAVENGING	OHV
VALVES PER CYLINDER	2
FUEL TYPE	CDI w/electric spark advance
FUEL TANK / FUEL LINE	0.3 US Gallon (1.15 liter)
OIL TYPE	Mercury 4-Stroke Outboard Oil
OIL CAPACITY	450 mL / 15 oz
LUBRICATION	Wet sump
ALTERNATOR	Optional 12V 50W 4A (installation required)
COOLING SYSTEM	Water-cooled w/thermostat
SALTWATER RATED	Yes
GEAR RATIO	2.15:1
GEAR SHIFT	Forward-Neutral-Reverse (forward mounted shift lever)
PROPELLER	7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum
